10km Ground To Ground Outdoor Wireless IP Link For NLOS Video Transmitting

Name: 10km Ground To Ground Outdoor Wireless IP Link For NLOS Video Transmitting
Brand: IWAVE
Price: 1 USD

China 10km Ground To Ground Outdoor Wireless IP Link For NLOS Video Transmitting wholesale

Brand Name : IWAVE

Model Number : FDM-6823FT

Certification : CE

Place of Origin : CHINA

MOQ : 2units

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100units/month

Delivery Time : 15-20 working days

Packaging Details : standard

Name : 10km Ground To Ground Outdoor Wireless IP Link For NLOS Video Transmitting

Networking : PTMP/PTP

Data rate : 120Mbps

Nodes : 64

Power : 10Watts or 20Watts on request

Frequency : 600Mhz/1.4Ghz

Contact Now

Model: FDM-6823FT

10km Ground To Ground Outdoor Wireless IP Link For NLOS Video Transmitting

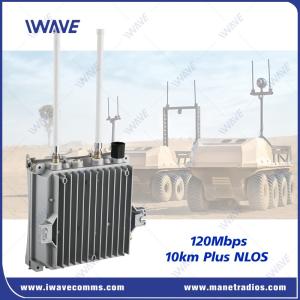

FDM-6823FT is a robust 2x2 MIMO outdoor wireless IP link system designed for non-line-of-sight (NLOS) video and data transmission,it can reach 30km LOS distance and 10km NLOS distance.It's designed by IWAVE based on mature SOC chipset, 2watts power

It adopts star networking working mode to provide IP transparent transmission channels for upper layer applications such as video, voice, and data.

FDM-6823FT provides wired Ethernet interface, WLAN wireless network and other access methods to facilitate other mobile terminals to access the network.

Here's a structured breakdown of its key features and capabilities:

Features

Networking Mode: PTMP
Max Output Power: 2x33dbm
Bandwidth: 1.4MHz, 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Support 1.4Ghz/600Mhz for option
Distance: LOS 10km-30km ground to ground distance
Support automatic power control
Support automatic frequency control
Interface: 1*RJ45+1*Power Input +2*RF Antenna
Support WEBUI for network management and parameter configurable.
Automatic power control
Automatic frequency point control
Supports UDP/TCPIP FULL HD Video transmission.
Automatic Frequency Point Control

Key Technologies

CA(Carrier Aggregation)Technology

FDM-6802PTM adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.

Frequency-Hopping Spread Spectrum(FHSS)

Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.

IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.

Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.

Application

Point-to-multipoint medium distance communication

Long range IP data transmitting

Electricity and hydrology line patrol observation

Fire and security emergency communication

Specification

GENERAL
TECHNOLOGY	Wireless based on TD-LTE Technology Standards	MOUNTING	POLE MOUNT
ENCRYPTION	ZUC/SNOW3G/AES (128/256) OptionalLayer-2	MOUNTING	POLE MOUNT
ENCRYPTION	ZUC/SNOW3G/AES (128/256) OptionalLayer-2	MECHANICAL
NETWORKING TIME	≤5s	TEMPERATURE	-20℃~+55℃
DATE RATE	30Mbps (Uplink and Downlink)	Waterproof	IP66
DATE RATE	30Mbps (Uplink and Downlink)	DIMENSIONS	21621670mm
SENSITIVITY	10MHz/-103dBm	WEIGHT	3kg
RANGE	LSO 10km-30km (Ground to ground)(Depends on the actual environment)	MATERIAL	Aluminum Alloy
NODE	64 nodes	MOUNTING	Pole-mounted
MIMO	2*2 MIMO	POWER
POWER	2watts	VOLTAGE	DC24~27V Or AC
MODULATION	QPSK, 16QAM, 64QAM	POWER CONSUMPTION	30watts
ANTI-JAM	Automatically frequency hopping	INTERFACES
LATENCY	End to END: 60ms-80ms	RF	2 x N-Type
FREQUENCY		ETHERNET	1xRJ45
1.4Ghz	1.4G(1420-1530Mhz)
600Mhz	600Mhz(566-678Mhz)

SENSITIVITY
1.4GHZ	20MHZ	-102dBm
	10MHZ	-100dBm
	5MHZ	-96dBm
800MHZ	20MHZ	-102dBm
	10MHZ	-100dBm
	5MHZ	-96dBm

INTERFACES
RF	2 x N-Type Antenna Port
PWER INPUT	1 x Ethernet Port(POE 24V)
Other	4*Mounting Holes
